Straight flute Reamer

Position:Home > Product > Reamer > Straight flute Reamer >

HRC65 carbide straight shank reamer

WTFTOOLS customized non-standard solid carbide end mill, drills bit,reamer,forming cutter and other tools

HRC65 carbide straight shank reamer

Introduction:HRC65 carbide straight shank reamer.Workpiece applications: aerospace,transportation,medical equipment,military manufacturing,mold development,instrumentation etc.functional:Gray Iron,Ductile cast iron,stainless steel,structural steel,Alloy steel and common material

DetailFAQ(8)Message


Minimum quantity: 5-10 pcs. Supply capacity: 10000 pcs/ per month.

HRC65 carbide straight shank reamer.

HRC65 carbide straight shank reamer

Raw materials and coating types:



Type Material MG CO Bending strength
HRC45 YG10X  0.7um 10% 3320N/mm2
HRC55 YL10.2 &WF25 0.6um  10% 4000N/mm2
HRC60 K44 &K40 0.5um 12% 4300N/mm2
HRC65 H10F 0.5um 10% 4300N/mm2



Coating Hardness(HV) Thickness(UM) Oxidation temperature.(ºC) friction coefficient Color
AlTin 3200 2.5-3 900 0.3 Black
Tialn 2800 2.5-3 800 0.3 Violet
TiSin 3600 3 1000 0.45 Coppery
Naco 42(GPA) 3 1200 0.4 Blue

1) Raw Materials:

Kennametal Carbide from USA,Sandvik Carbide from Sweden,
CB Carbide from Taiwan,Zhuzhou Carbide from Hunan province.
1, HRC50 –YG10X
2, HRC55 –YL10.2; HRC55– CB Carbide
3, HRC58– Chinese K44
4, HRC60– K44 from Germany
5, HRC65 –Sandvik Carbide

2) Super SI3N4:
*reduce the coeffiction of friction, and improve the tools life much.

3) Detection:
Each end mill is inspected by Zoller measuring and inspected machine.

4) Work Piece:
Applicatrion: Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.
Usage: Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

5) Advanced CNC grinding machines
5-Axis automatic CNC grinding machines from abroad
Walter from Germany
ANCA from Australia

6)Reasonable price
More quantity, more discount.
OEM is also available,according to your drawings or samples.

7) Strict quality checking
Checked each piece.
Guarantee the tolerance 0-0.02mm

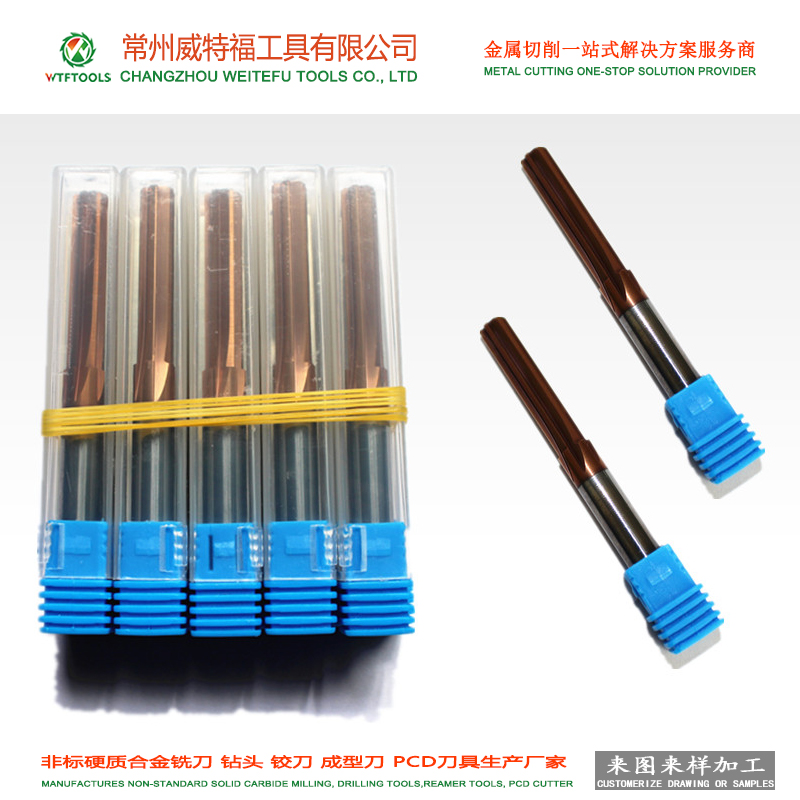

8)Packaging & Shipping
Packing Details:
One plastic pipe packs one piece,10 pieces per group.
Use air bubble paper to encase the plastic pipes.
Put goods encased with air bubble paper into the carton box.
