manufacturered non-standard carbide end mill

WTFTOOLS customized non-standard solid carbide end mill, drills bit,reamer,forming cutter and other tools

manufacturered non-standard carbide end mill

Introduction:manufacturered non-standard carbide end mill.Workpiece applications: aerospace,transportation,medical equipment,military manufacturing,mold development,instrumentation etc.functional:Gray Iron,Ductile cast iron,stainless steel,structural steel,Alloy steel and common material

DetailFAQ(8)Message


Tips: Common catalogs carbide tungsten carbide end mill cutters

Classification of milling cutter according to machined material

Special-purpose tungsten steel milling cutter special graphite steel milling cutter special tungsten steel milling cutter for aluminum alloy

Special tungsten steel milling cutter for stainless steel special tungsten steel milling cutter special tungsten steel milling cutter for high temperature alloy

High efficiency tungsten steel milling cutter series


Classification of machined hardness milling cutters

45 degree tungsten steel milling cutter 55 degree tungsten steel milling cutter 60 degree tungsten steel milling cutter 65 degree tungsten steel milling cutter

70 degree tungsten steel milling cutter

Classification according to milling cutter shape

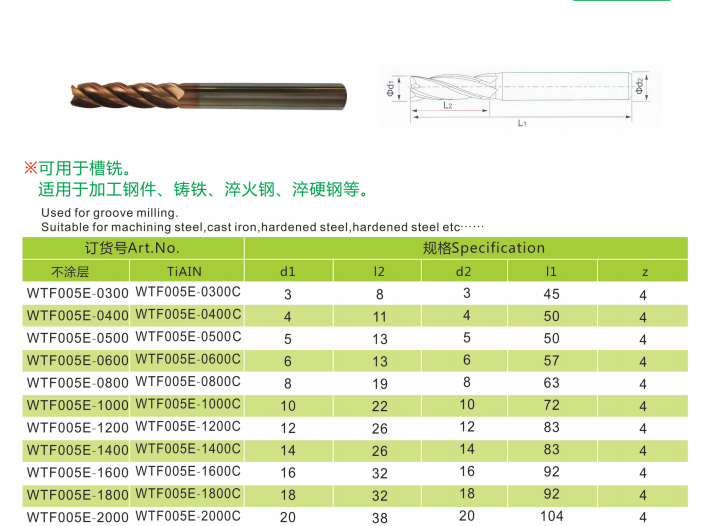

Carbide flat bottom end mill D1 (edge diameter) *L1 (blade length) *L2 (total length) *d2 (handle diameter)

Carbide ball end milling cutter =R milling cutter R (arc diameter) *d1 (edge diameter) *L1 (blade length) *L2 (total length) *d2 (handle diameter)

Carbide round nose milling cutter R (arc diameter) *d1 (edge diameter) *L1 (long blade) *L2 (total length) *d2 (handle diameter)

Cemented carbide deep groove milling cutter / long neck milling cutter

Carbide taper milling cutter



Minimum quantity: 5-10 pcs. Supply capacity: 10000 pcs/ per month.


manufacturered non-standard carbide end mill

Minimum quantity: 5-10 pcs. Supply capacity: 10000 pcs/ per month.
1) Raw Materials:

Kennametal Carbide from USA,Sandvik Carbide from Sweden,
CB Carbide from Taiwan,Zhuzhou Carbide from Hunan province.
1, HRC50 –YG10X
2, HRC55 –YL10.2; HRC55– CB Carbide
3, HRC58– Chinese K44
4, HRC60– K44 from Germany
5, HRC65 –Sandvik Carbide

2) Super SI3N4:
*reduce the coeffiction of friction, and improve the tools life much.

3) Detection:
Each end mill is inspected by Zoller measuring and inspected machine.

4) Work Piece:
Applicatrion: Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.
Usage: Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

5) Advanced CNC grinding machines
5-Axis automatic CNC grinding machines from abroad
Walter from Germany
ANCA from Australia

6)Reasonable price
More quantity, more discount.
OEM is also available,according to your drawings or samples.

7) Strict quality checking
Checked each piece.
Guarantee the tolerance 0-0.02mm

8)Packaging & Shipping
Packing Details:
One plastic pipe packs one piece,10 pieces per group.
Use air bubble paper to encase the plastic pipes.
Put goods encased with air bubble paper into the carton box.
